ECO-FILL:
PROFESSIONAL JOINT GROUTING AND INJECTION SYSTEM

Eco-Fill System Introduction Eco-Fill Joint Grouting Application

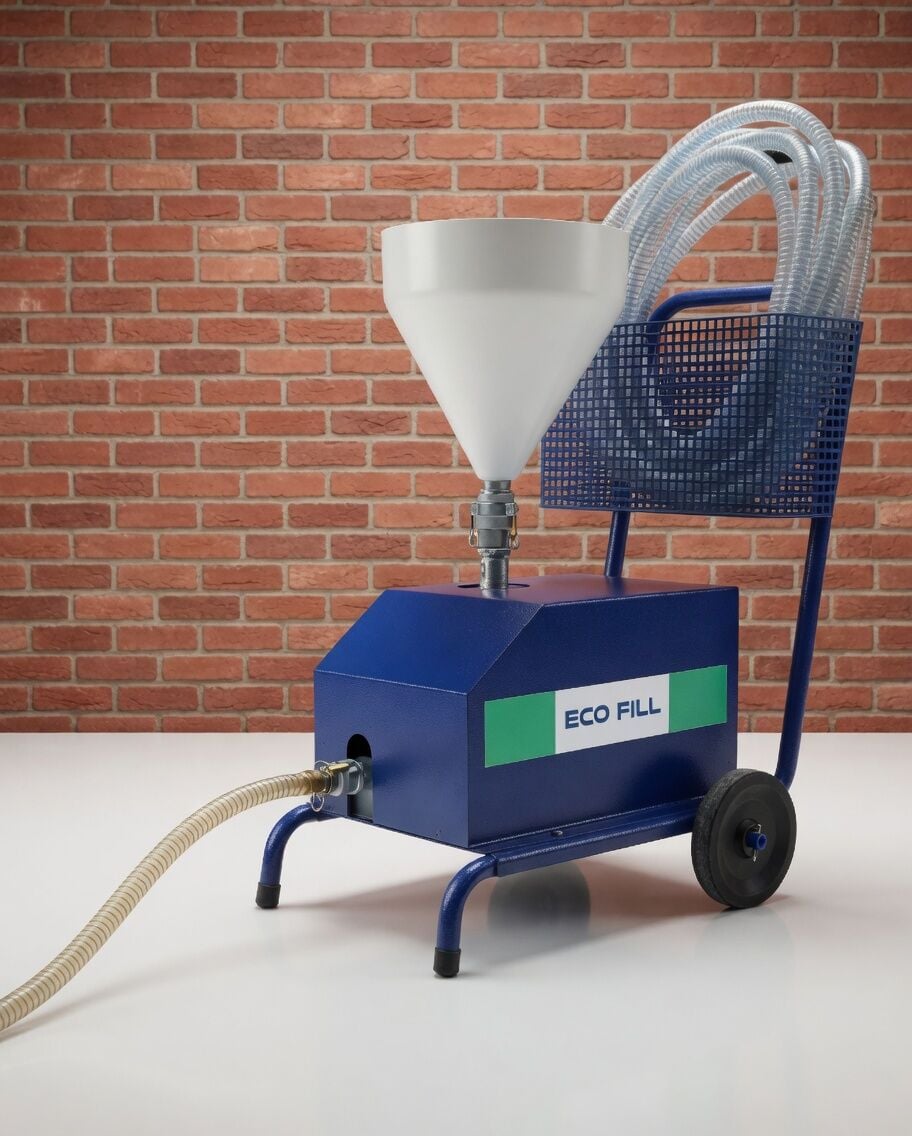

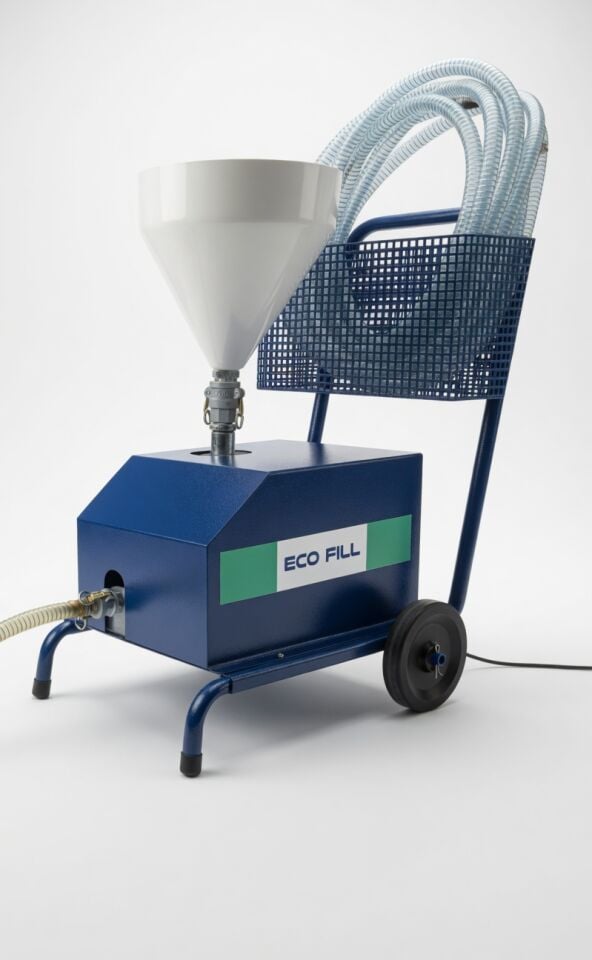

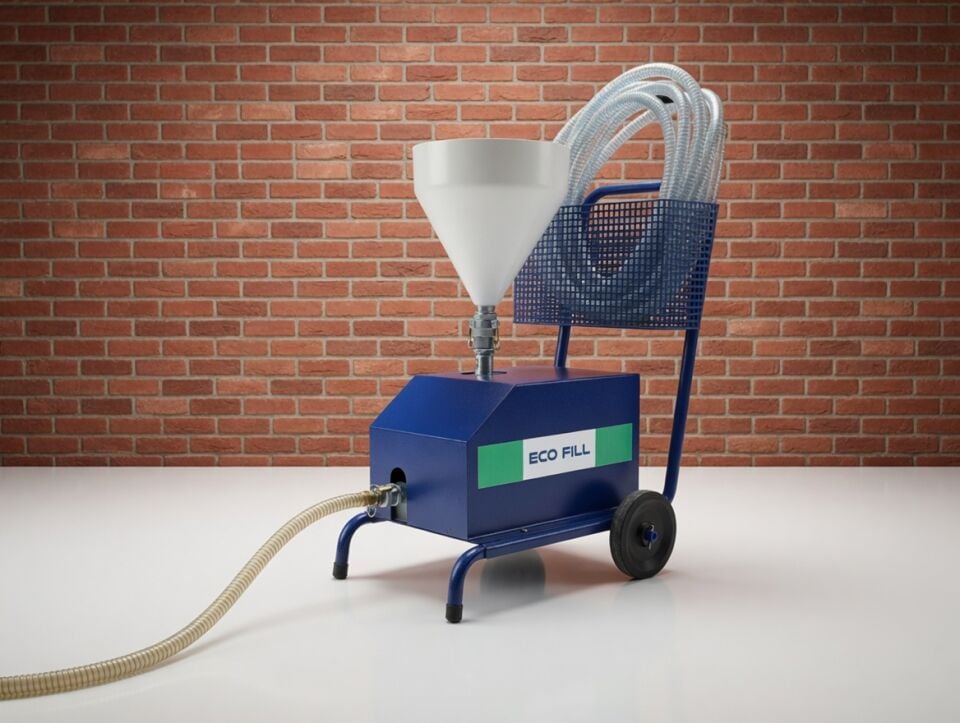

eco-fıll JOINT GROUTING, INJECTION,
AND MICRO-INJECTION MACHINE


The Eco-Fill Joint Grouting, Injection, and Micro-Injection Machine is designed to deliver high standards across a wide range of applications, from historic restoration projects to modern construction. By combining controlled mortar flow, precise pressure adjustments, and job site durability, it ensures the most efficient use of labor in injection processes.

It is a highly effective system used especially for filling joints on facades, natural stone, brick, and marble surfaces. In addition to joint grouting, it offers perfect compatibility for cement, adhesive, polyurethane, resin spraying, and precise micro-injection processes.

TECHNICAL SPECIFICATIONS & DETAILS

Capacity & Hardware Features ›

  • 65W Motor Power: Delivers high performance and continuous mortar flow with low energy consumption.
  • 20-Liter Hopper Capacity: Eliminates the need for frequent refills thanks to its large capacity, offering uninterrupted operation.
  • 6-Meter Hose Length: Provides a wide range of motion on site, featuring a flexible and wear-resistant structure.
  • 20 mm Nozzle Diameter: Offers an ideal outlet diameter that prevents clogging in various mortar consistencies.

Smart Control Technologies ›

  • Electronic Speed Adjustment: Allows precise control of the flow rate according to mortar viscosity and application sensitivity.
  • Reverse Pumping Mechanism: Supports bidirectional operation to clear blockages and simplify post-job cleaning.
  • Remote Control System: Equipped with a control mechanism that can be strapped to the operator's wrist, offering safety and control during solo operation.

Precise Micro-Injection ›

  • Nozzle with Pressure Gauge: Enables real-time monitoring of injection pressure during precise micro-injection procedures.
  • High Pumping Power: Easily pumps mortar up to a height of 5 meters thanks to its specialized motor.
  • Structural Protection: Controlled pressure management prevents damage caused by overpressurization in delicate historical heritage structures.

Application Areas ›

  • Historic Restoration: Authentic and non-destructive joint pointing for stone, brick, and arches.
  • Structural Strengthening: Injecting cement and special resin-based grouts into cracks.
  • Construction and Decoration: Grouting for natural stone claddings, facing bricks, and decorative walls.
  • Micro-Injection: Pumping liquid grout for the stabilization of sub-surface and fine structural cavities.

On-Site Usage Tips ›

  • Homogeneous Mixture: Ensure the mortar is mixed lump-free to prevent clogging of the pump and nozzle tips.
  • Pressure Monitoring: During micro-injection, monitor the pressure gauge to apply force suitable for the structural resistance limits.
  • Right Nozzle Selection: Choose flat nozzles for wide joints, and round nozzles for deep cavities and hole injections.

Technical Product Catalog

Explore our comprehensive catalog containing technical details, accessory options, nozzle alternatives, and application diagrams of our Eco-Fill injection system.

View Catalog
Eco-Fill Product Catalog

APPLICATION AND OPERATION STEPS

Eco-Fill Precise Grouting on Site Step 1: Mortar Filling Step 2: Start with Remote Control Step 3: Injection Stage
